RAVIOLI SHAPES

Reference chart of the ravioli die shapes available for our ravioli machines, grouped by shape. Images are not to scale — click any measurement to open the die drawing. Need a shape you don’t see here? Contact us about custom dies.

Rectangle

Images are not to scale

Triangle

Images are not to scale

Round

Images are not to scale

Mezzaluna

Images are not to scale

Other Shapes

Images are not to scale

#000c
22 x 22mm
#001c
30 x 30mm
#002c
37 x 37mm
#010c
50 x 50mm

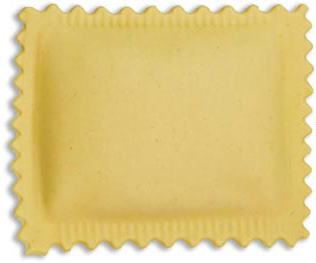

#011c
70 x 50mm
#036c
66 x 33mm

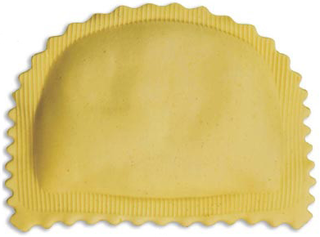

#044c
40 x 30mm
#045c
25 x 22mm
#051c
95 x 85mm
#065c
90 x 70mm
Ravioli shape rav1
#005c
60 x 65mm
#007c
96 x 32mm
#012c
66mm x 66mm
#046c
90 x 65mm
#053c
55 x 30mm
#062c
65 x 40mm
#063c
40 x 40mm
#066c
95 x 35mm
Ravioli shape rav2

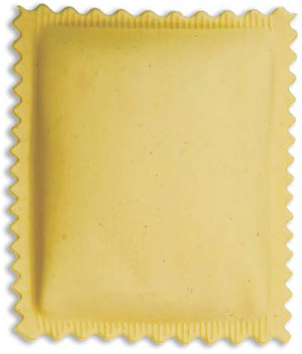

#014c
41mm

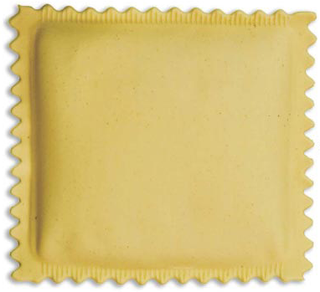

#015c
72mm
#017c
55mm
#032c
43mm

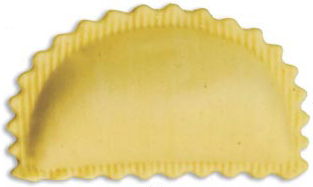

#042c
10 x 88mm
#057c
30mm
#059c
85mm
#061c
75mm
#064c
30mm
Ravioli shape rav3
#004c
69 x 57mm
#006c
67 x 37mm
#009c
44 x 37mm
#013c
57mm

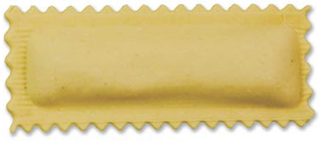

#016c
55mm
#028c
10 x 37mm
#029c
85 x 68mm
#030c
65 x 55mm
#031c
104 x 52mm
#048c
100 x 80mm
Ravioli shape rav4
#020c
55 x 45mm
#021c
38 x 38mm

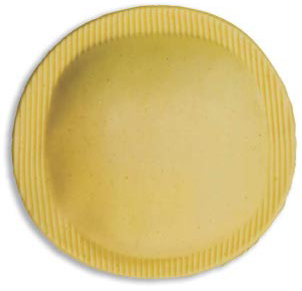

#033c
53 x 62mm
#038c
54 x 51mm
#043c
100 x 85mm
#052c
110 x 60mm
#060c
60 x 50mm
Ravioli shape rav5
#018c
50 x 40mm
#019c
85 x 75mm

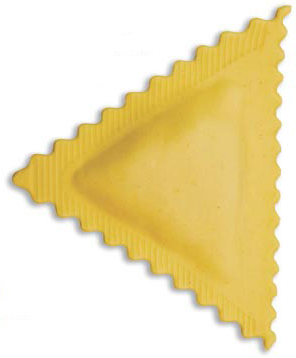

#022c
50 x 50mm
#023c
65 x 50mm
#025c
65 x 55mm
#026c
60 x 50mm
#027c
60 x 55mm
Ravioli shape rav7
